Introduction

This is an example the current greedy approach will probably not work.

rm(list = ls())
library(ebpmf.alpha)
library(flashr)
set.seed(123)
n = 150
p = 500
k= 5
L = matrix(0, nrow=n, ncol=k)
F = matrix(0, nrow=p, ncol=k)
L[1:(n/5),1] = 1
L[((n/5)+1):(2*n/5),2] = 1
L[(2 * (n/5)+1):(3*n/5),3] = 1
L[(3 * (n/5)+1):(4*n/5),4] = 1
L[(4 * (n/5)+1):(5 *n/5),5] = 1

F[1:(p/5),1] = 1+10*runif(p/5)
F[((p/5)+1):(2*p/5),2] = 1+10*runif(p/5)
F[(2 * (p/5)+1):(3*p/5),3] = 1+10*runif(p/5)
F[(3 * (p/5)+1):(4*p/5),4] = 1+10*runif(p/5)
F[(4 * (p/5)+1):(5*p/5),5] = 1+10*runif(p/5)

lambda = L %*% t(F)
X = matrix(rpois(n=length(lambda),lambda),nrow=n)

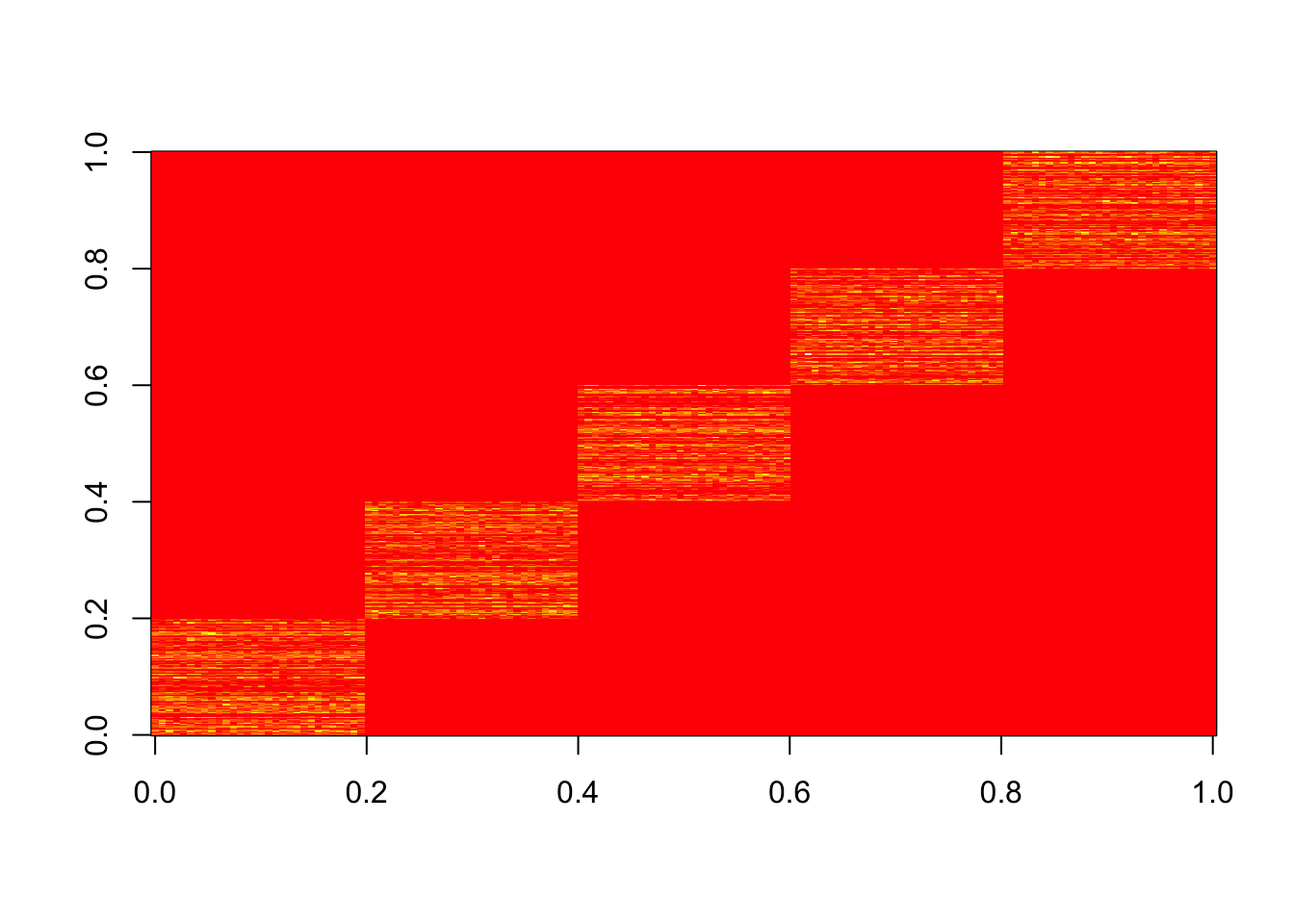

image(X)

Version Author Date
23decbe zihao12 2020-06-04
eps = 1e-4
init = NNLM::nnmf(A = X, k = k, loss = "mkl", method = "lee")
L0 = init$W
F0 = t(init$H)
init_pmf = list(L = matrix(L0[,1] + eps, ncol = 1),
                F = matrix(F0[,1] + eps, ncol = 1))
maxiter = 200
rate = 0.6
verbose = FALSE

system.time(
  fit_pmf <- ebpmf.alpha::pmf_greedy(X = X, K = 3 * k,
                              init = init_pmf, maxiter = maxiter, rate = rate,
                              verbose = verbose)
)
   user  system elapsed
  4.402   0.087   4.515
system.time(
  fit_flash <- flash(data = X, Kmax = 3*k, verbose = verbose)
)
   user  system elapsed
  3.732   0.850   4.627
system.time(
  fit_svd <- svd(X, nu = 3*k, nv = 3*k)
)
   user  system elapsed
  0.025   0.000   0.026
fit_flash
Summary of flash object:
  Number of factor/loading pairs: 15
  Proportion of variance explained:
    Factor/loading 1: 0.182
    Factor/loading 2: 0.175
    Factor/loading 3: 0.177
    Factor/loading 4: 0.178
    Factor/loading 5: 0.172
    Factor/loading 6: 0.001
    Factor/loading 7: 0.001
    Factor/loading 10: 0.001
    Factor/loading 12: 0.001
    Factor/loading 13: 0.001
    Factor/loading 14: 0.001
    Factor/loading 15: 0.001
      *Factor/loadings with PVE < 0.001 are omitted from this summary.
  Value of objective function: -105999.189

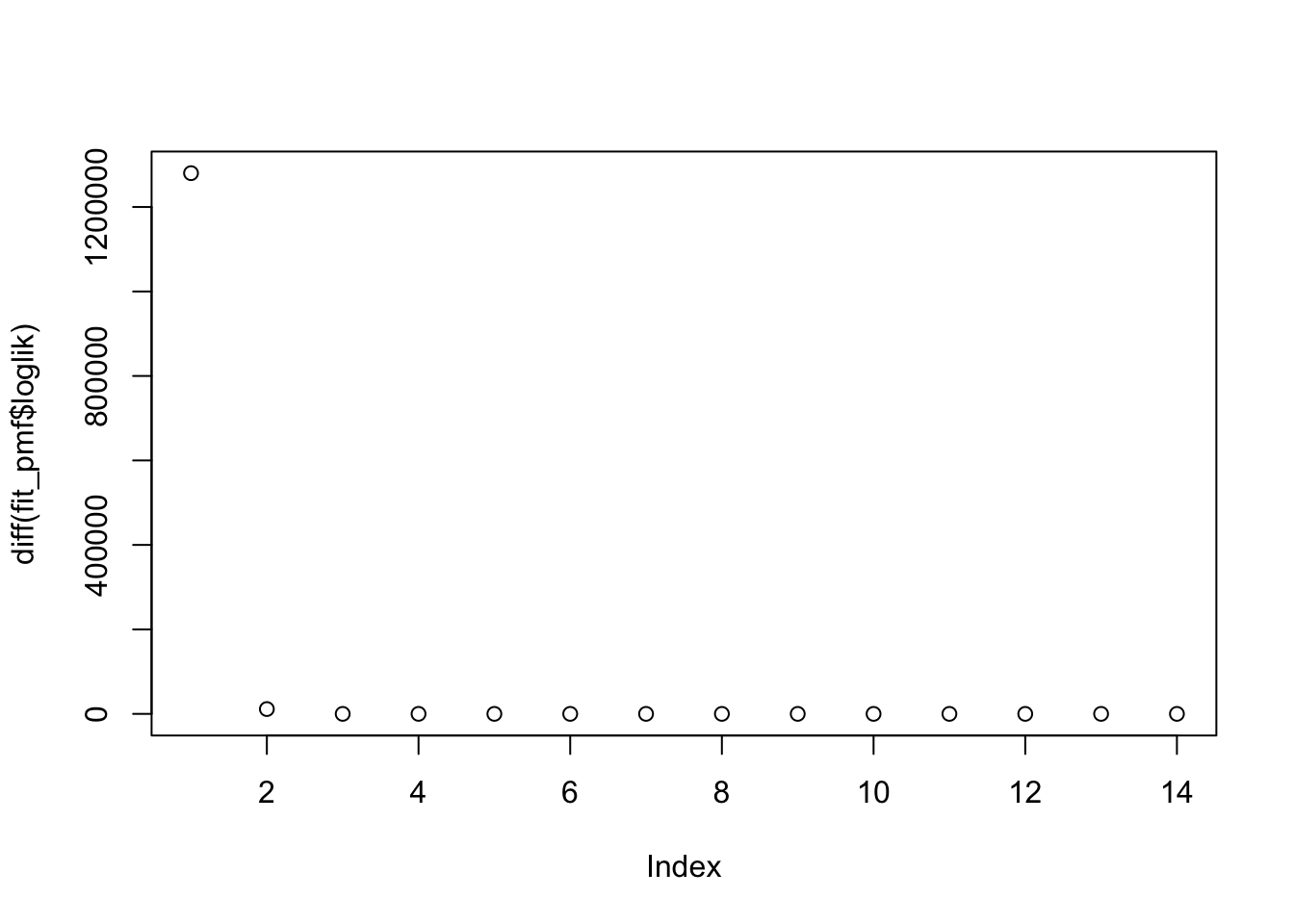

look at progress from greedy pmf

plot(diff(fit_pmf$loglik))

Version Author Date
23decbe zihao12 2020-06-04

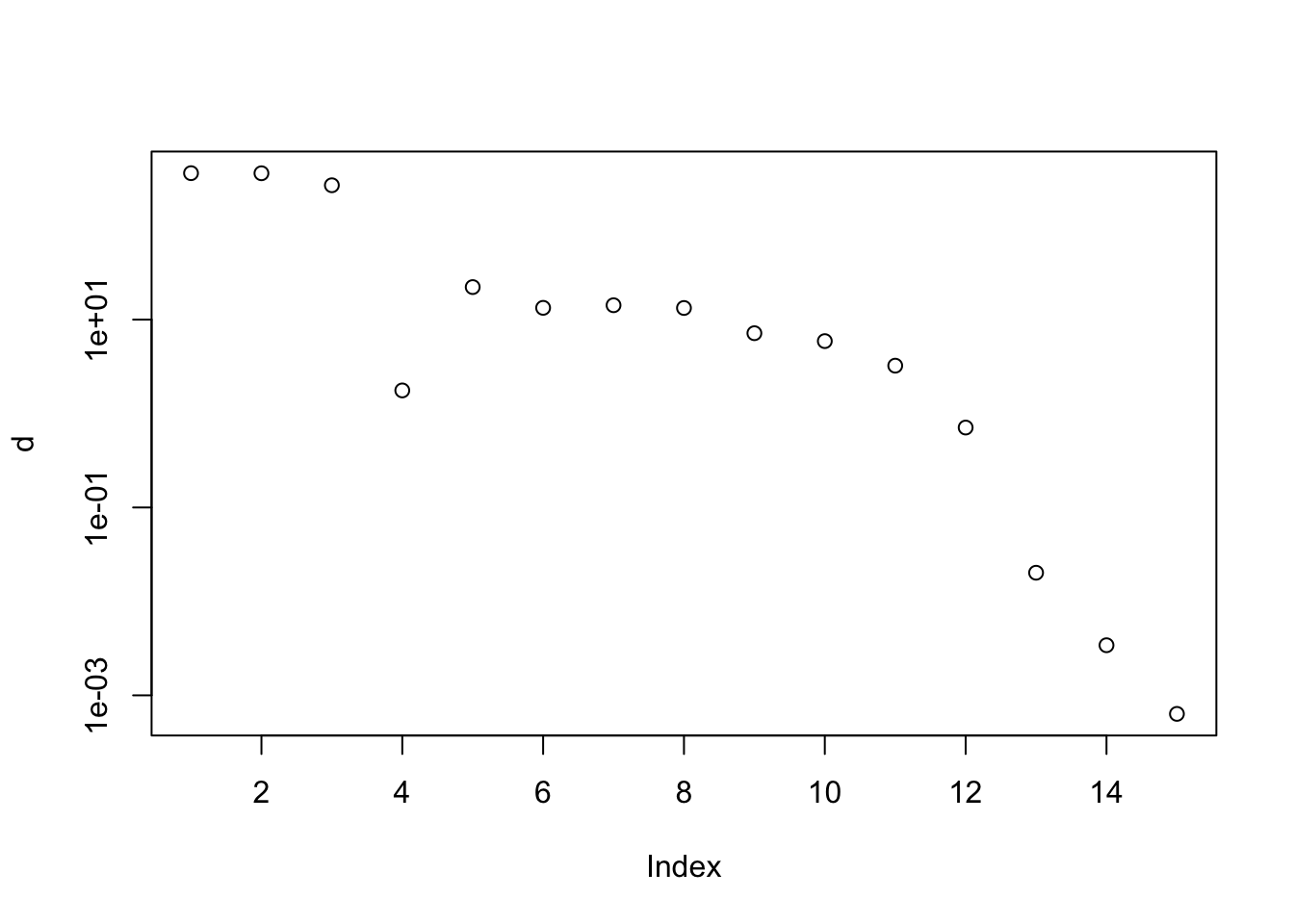

look at \(l_{ik} f_{jk}\) for pmf_greedy

I scale \(l_{Ik}, f_{Jk}\) to have Frobenius norm 1, as the other two methods

d_l = sqrt( diag(t(fit_pmf$L) %*% fit_pmf$L) )
d_f = sqrt( diag(t(fit_pmf$F) %*% fit_pmf$F) )
d = d_l*d_f
plot(d, log = "y")

Version Author Date
23decbe zihao12 2020-06-04

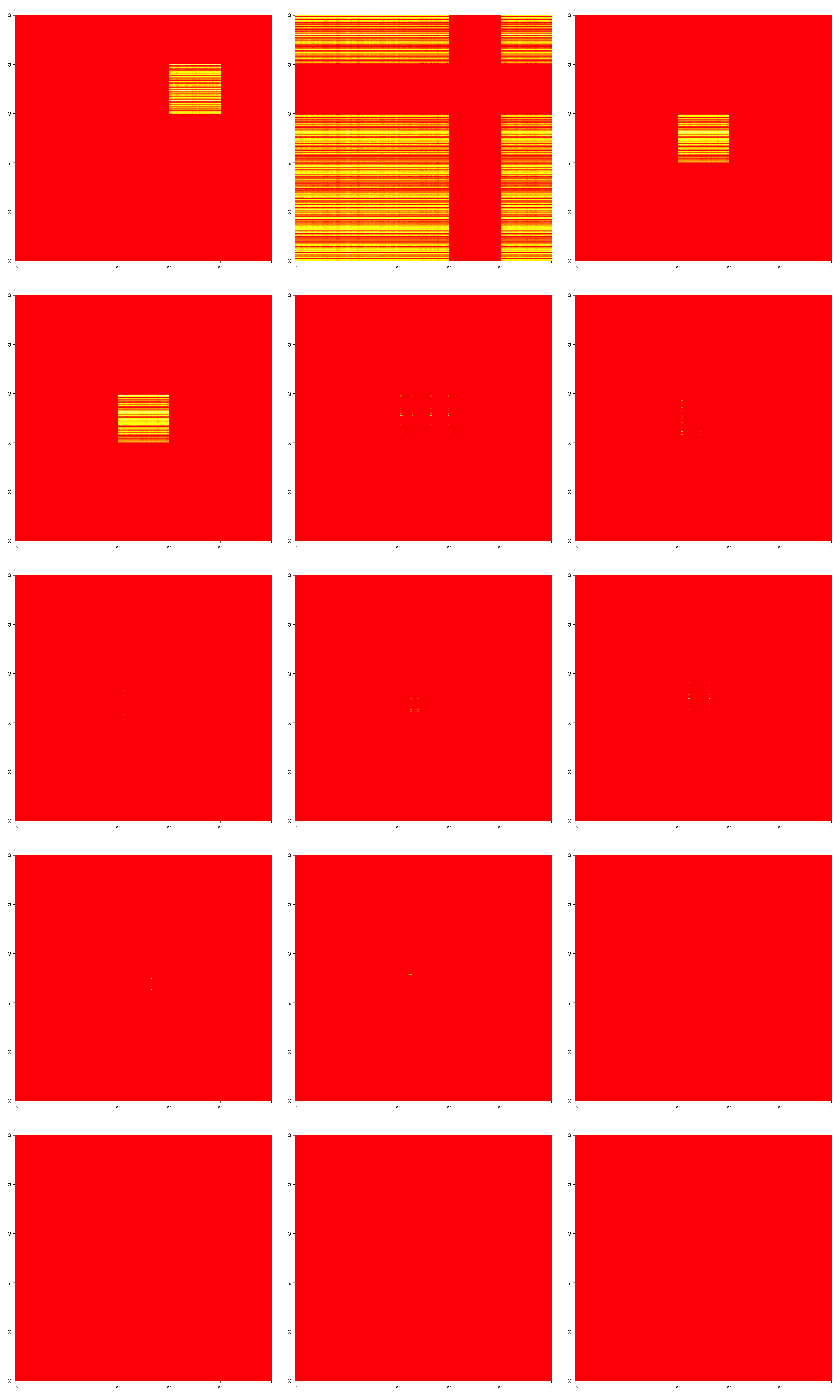

Kmax = 3 *k
par(mfrow = c(k, 3))
for(k_ in 1:Kmax){
  l = fit_pmf$L[,k_]/d_l[k_]
  f = fit_pmf$F[,k_]/d_f[k_]
  lam = l %o% f
  image(lam)
}

Version Author Date
23decbe zihao12 2020-06-04

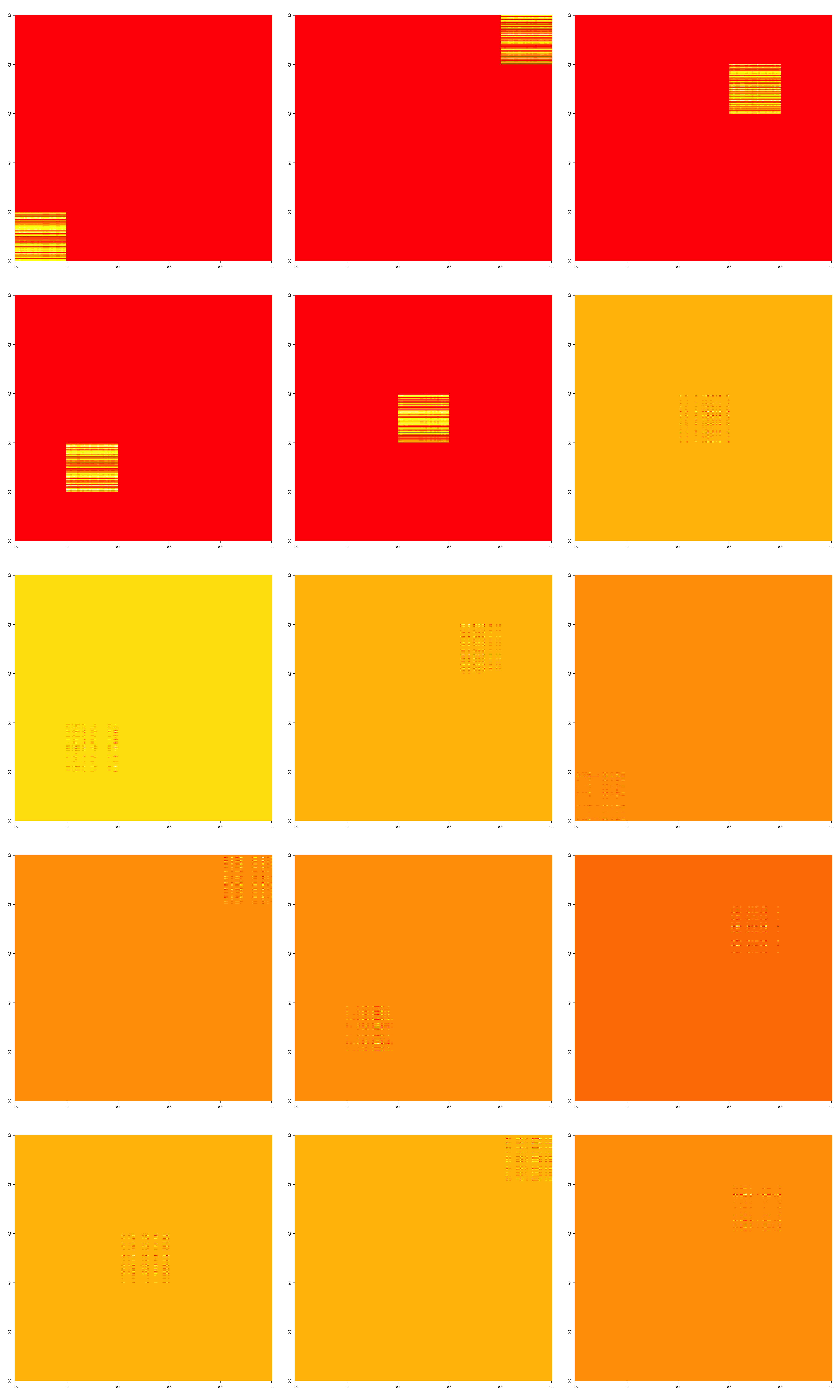

look at \(l_{ik} f_{jk}\) for flashr

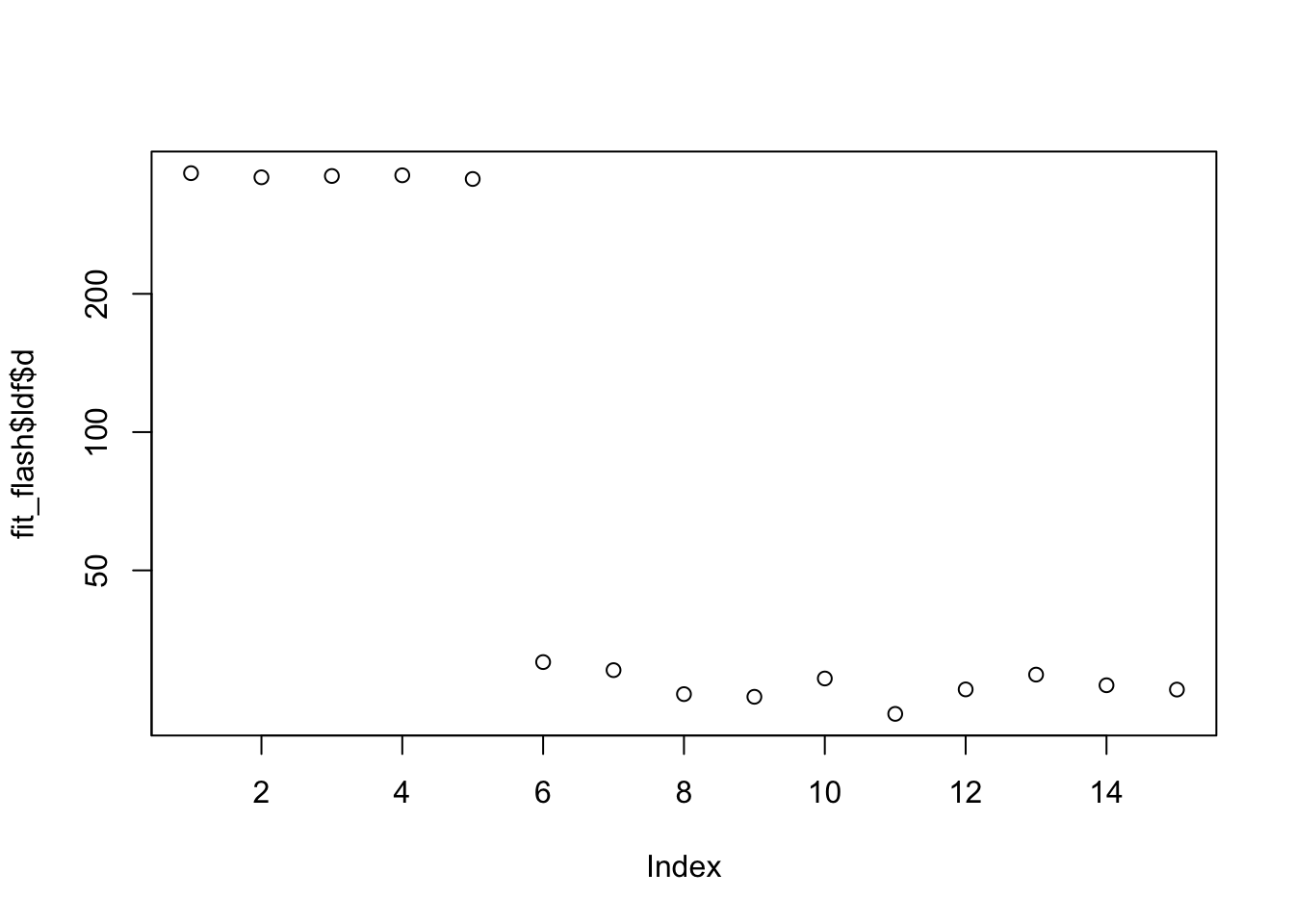

plot(fit_flash$ldf$d, log = "y")

Kmax = 3 *k
par(mfrow = c(k, 3))
for(k_ in 1:Kmax){
  l = fit_flash$ldf$l[,k_]
  f = fit_flash$ldf$f[,k_]
  lam = l %o% f
  image(lam)
}

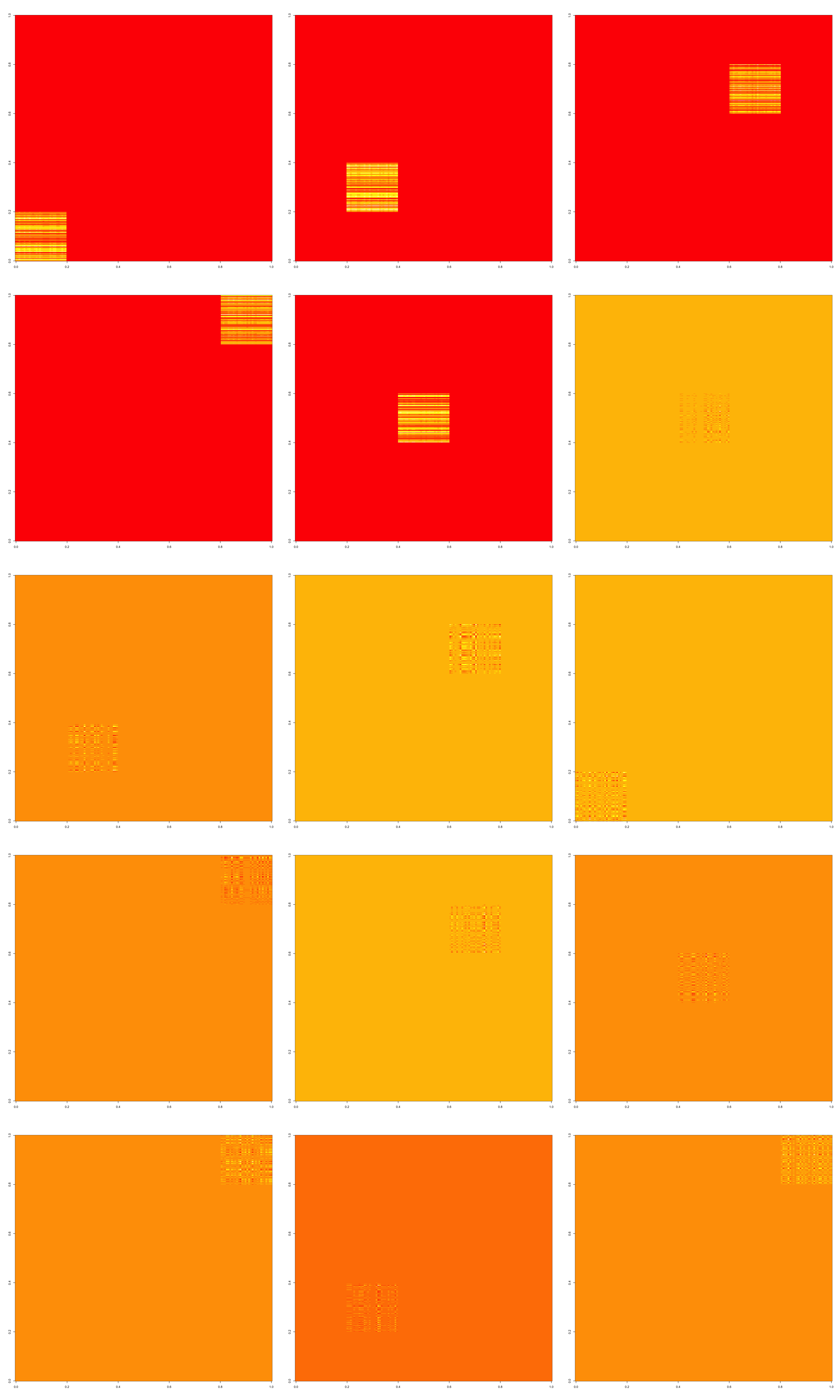

look at \(l_{ik} f_{jk}\) for svd

## u^t u = v^t v = I_k

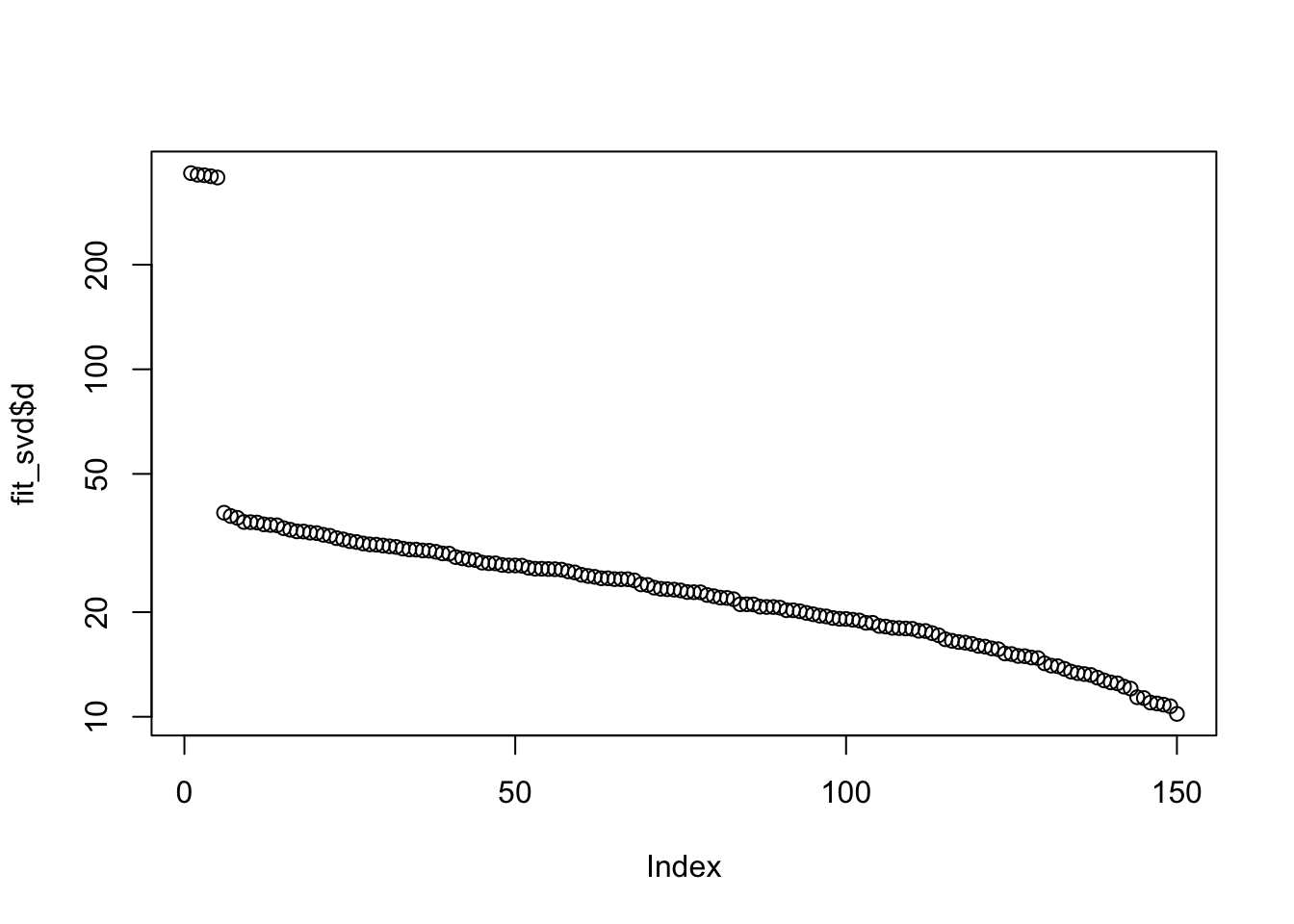

plot(fit_svd$d, log = "y")

Kmax = 3 *k
par(mfrow = c(k, 3))
for(k_ in 1:Kmax){
  l = fit_svd$u[,k_]
  f = fit_svd$v[,k_]
  lam = l %o% f
  image(lam)
}
