Introduction
Our model \[\begin{align} & X_{ij} \sim Pois(l_{i0} f_{j0} \sum_k l_{ik} f_{jk})\\ & l_{ik} \sim g_{L, k}(.)\\ & f_{jk} \sim g_{F, k}(.) \end{align}\]Although ebpmf_bg function has the option to use various prior families for \(l_{ik}, f_{jk}\), the focus is on \(g = \sum_l \pi_l Ga(1/\phi_l, 1/\phi_l)\) for both \(l_{ik}, f_{jk}\). The other options are not checked.
rm(list = ls())
library(Matrix)
library(ebpmf.alpha)
library(pheatmap)
library(gridExtra)
source("code/util.R")
source("code/misc.R")
set.seed(123)load data and use subset for experiments
docname = "kos"
datadir = "data/uci_BoW"
filename = sprintf("docword.%s", docname)
format = "txt"
X = read_uci_bag_of_words(file= sprintf("%s/%s.%s",
datadir,filename, format))
# dim(X)
# class(X)
# length(X@x)
## subset samples
row_sub = sample(x = 1:nrow(X), size = 500,replace = FALSE)
X_sub = X[row_sub,]
col_sub = which(colSums(X_sub) > 0)
X_sub = X_sub[, col_sub]
dim(X_sub)[1] 500 6325length(X_sub@x)[1] 51487run with default configuration
I specifically show how initialization is done (this is equivalent to using init = NULL).
K = 5
maxiter = 50
verbose = FALSE
## initialization
#init = ebpmf.alpha::initialize_qg_l0f0(X = X_sub, K = K, seed = 123)
initialize_qg_l0f0 <- function(X, K, seed = 123){
set.seed(seed)
n = nrow(X)
p = ncol(X)
L0 = matrix(exp(runif(n*K, min = -1.5, max = 1)), ncol = K)
F0 = matrix(exp(runif(p*K, min = -1.5, max = 1)), ncol = K)
qg = initialize_qg_from_LF(L0, F0)
l0 = rowSums(X)
denom <- colSums( t(qg$qfs_mean) * colSums(l0 * qg$qls_mean))
f0 <- colSums(X)/denom
## initialize g
aL = c(seq(0.01, 0.10, 0.01), seq(0.2, 0.9, 0.1), seq(1,15,2), 20, 50, 75, 100, 200, 1e3)
D = length(aL)
g = ebpm::gammamix(pi = replicate(D, 1/D), shape = aL, scale = 1/aL)
qg$gls = replicate(K, list(g))
qg$gfs = replicate(K, list(g))
return(list(qg = qg, l0 = l0, f0 = f0))
}
init = initialize_qg_l0f0(X = X_sub, K = K, seed = 123)
names(init)[1] "qg" "l0" "f0"model1 = ebpmf.alpha::ebpmf_bg(X = X_sub, K = K,
maxiter = maxiter, verbose = verbose,
init = init,
pm_func = list(f = ebpm::ebpm_gamma_mixture,
l = ebpm::ebpm_gamma_mixture),
fix_option = list(l0 = FALSE, f0 = FALSE,
gl = FALSE, ql = FALSE,

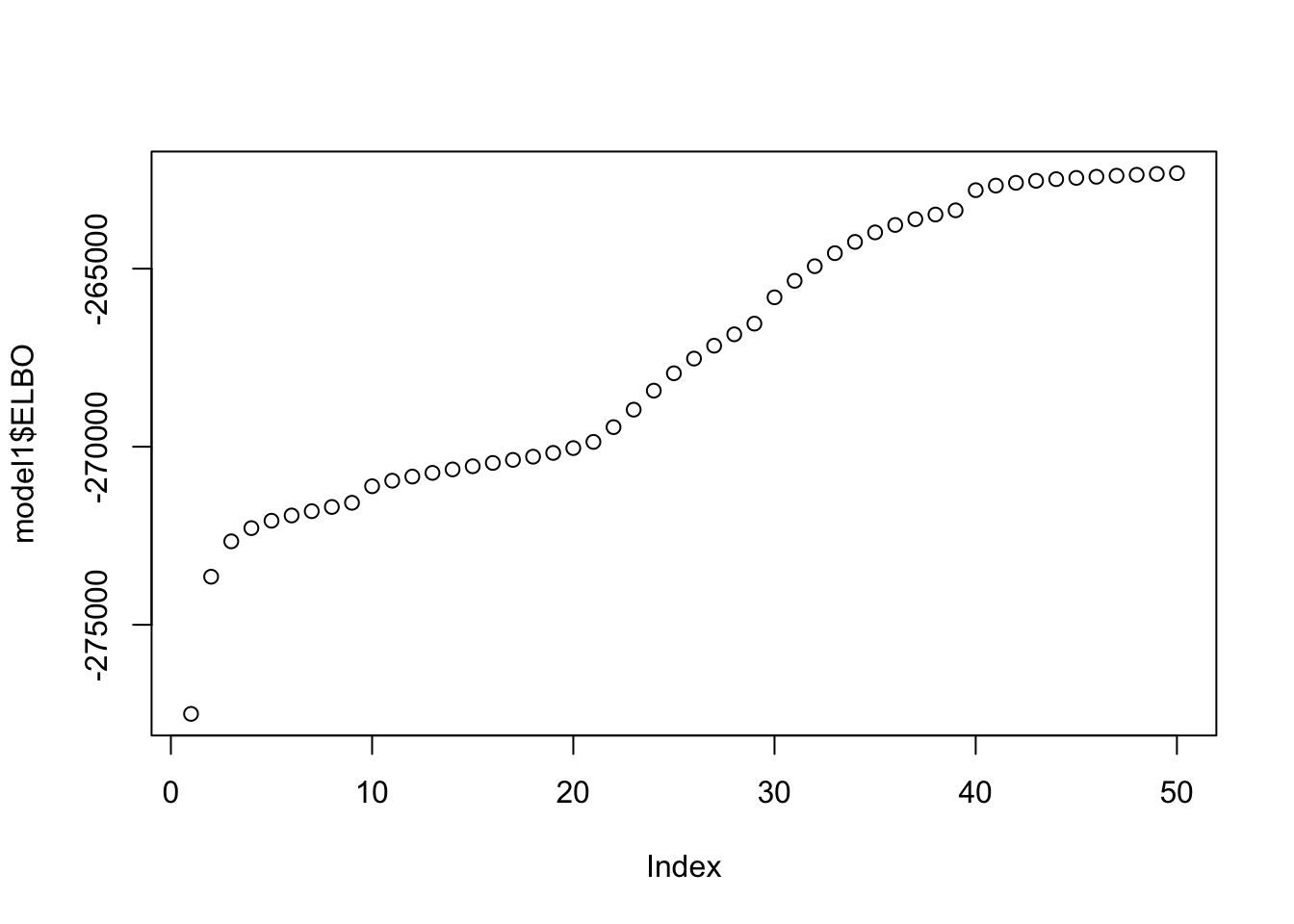

gf = FALSE, qf = FALSE))plot(model1$ELBO)

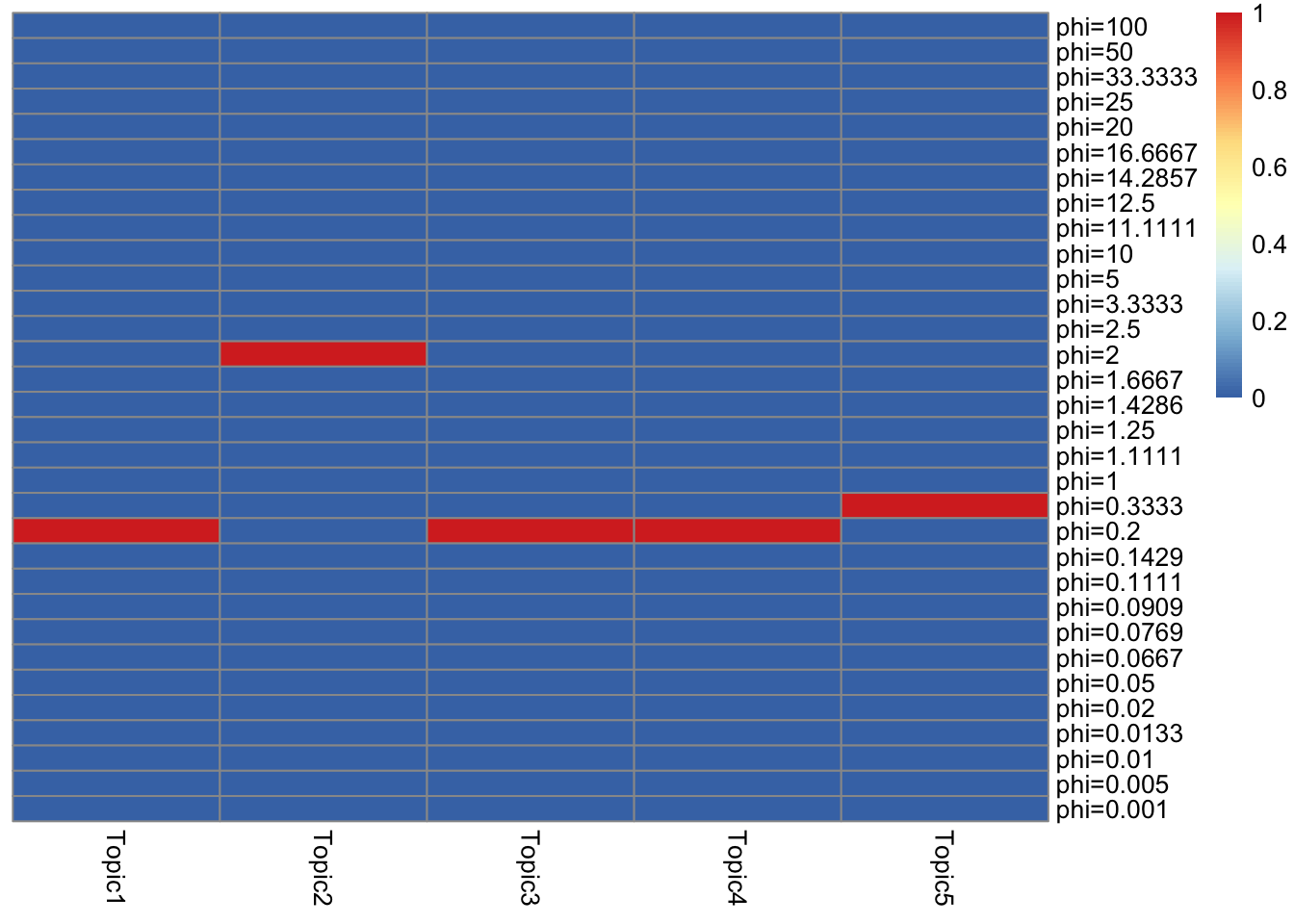

get_prior_summary(model1$qg$gls)

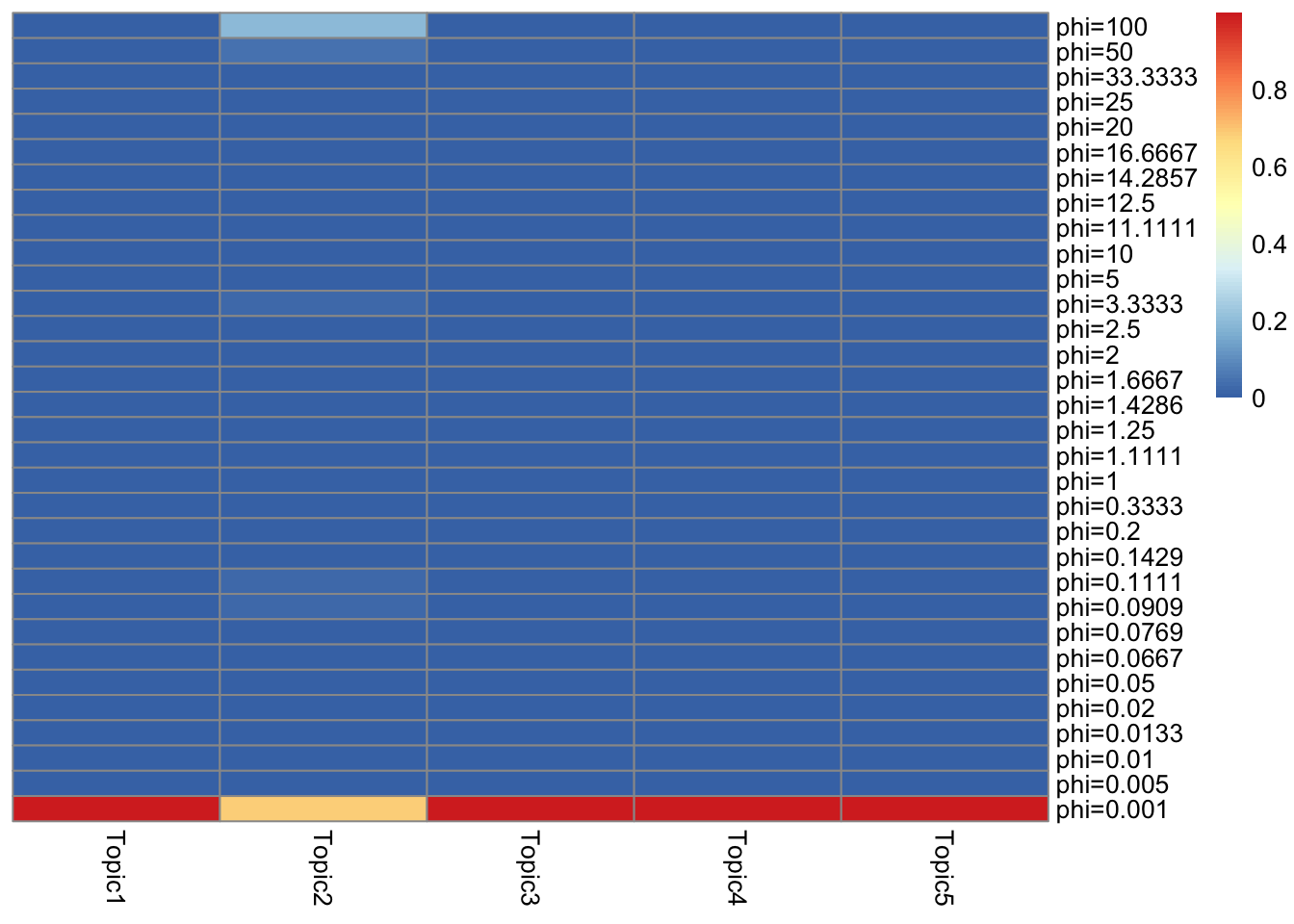

get_prior_summary(model1$qg$gfs)
what if we want to fix \(f_{j0} f_{jk}\)
Sometimes, we run pNMF and a pair of \((l_{i0} l_{ik},f_{j0} f_{jk})\). We want to fix \(f\)s and shrink \(l\)s. How can we do this?
initialize_qg_l0f0_fixF <- function(X, L0, F0){
l0 = apply(L0, 1, median)
l0[l0 == 0] = 1e-8
L0 = L0/l0
qg = ebpmf.alpha::initialize_qg_from_LF(L0 = L0, F0 = F0)
denom <- colSums( t(qg$qfs_mean) * colSums(l0 * qg$qls_mean))
f0 <- colSums(X)/denom
aL = c(seq(0.01, 0.10, 0.01), seq(0.2, 0.9, 0.1), seq(1,15,2), 20, 50, 75, 100, 200, 1e3)
D = length(aL)
g = ebpm::gammamix(pi = replicate(D, 1/D), shape = aL, scale = 1/aL)
qg$gls = replicate(K, list(g))
qg$gfs = replicate(K, list(NULL))
return(list(qg = qg, l0 = l0, f0 = f0))
}
fit_pmf = NNLM::nnmf(A = as.matrix(X_sub), k = K, loss = "mkl", method = "scd",
max.iter = 20, verbose = FALSE, show.warning = FALSE)
L0 = fit_pmf$W
F0 = t(fit_pmf$H)
init = initialize_qg_l0f0_fixF(X = X_sub, L0 = L0, F0 = F0)
model2 = ebpmf.alpha::ebpmf_bg(X = X_sub, K = K,
maxiter = maxiter, verbose = verbose,
init = init,
pm_func = list(f = ebpm::ebpm_gamma_mixture,## this will be ignored
l = ebpm::ebpm_gamma_mixture),
fix_option = list(l0 = FALSE, f0 = TRUE,
gl = FALSE, ql = FALSE,
gf = TRUE, qf = TRUE))
## check if `f` remains unchanged

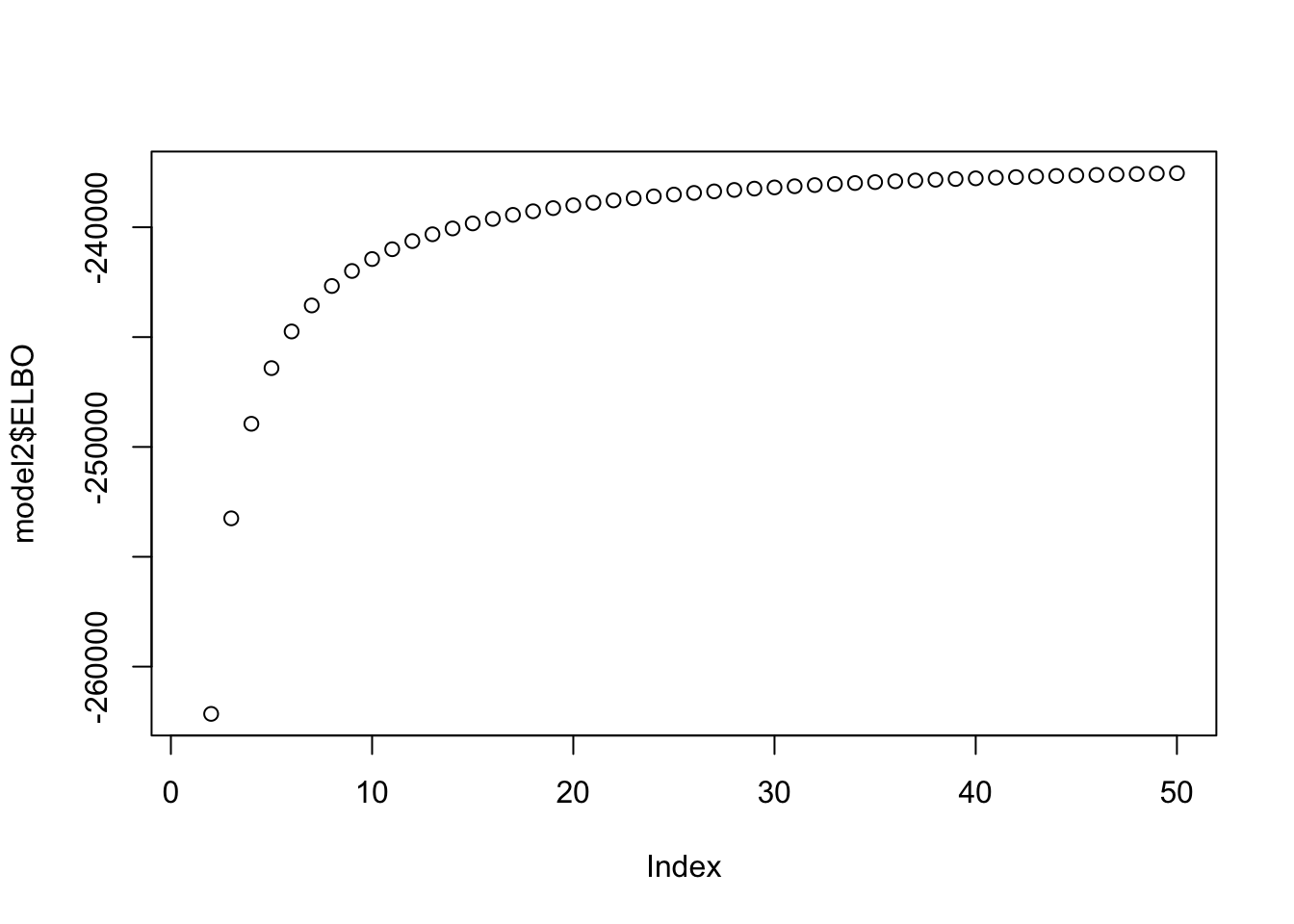

all(model2$qg$qfs_mean == init$qg$qfs_mean)[1] TRUEplot(model2$ELBO)

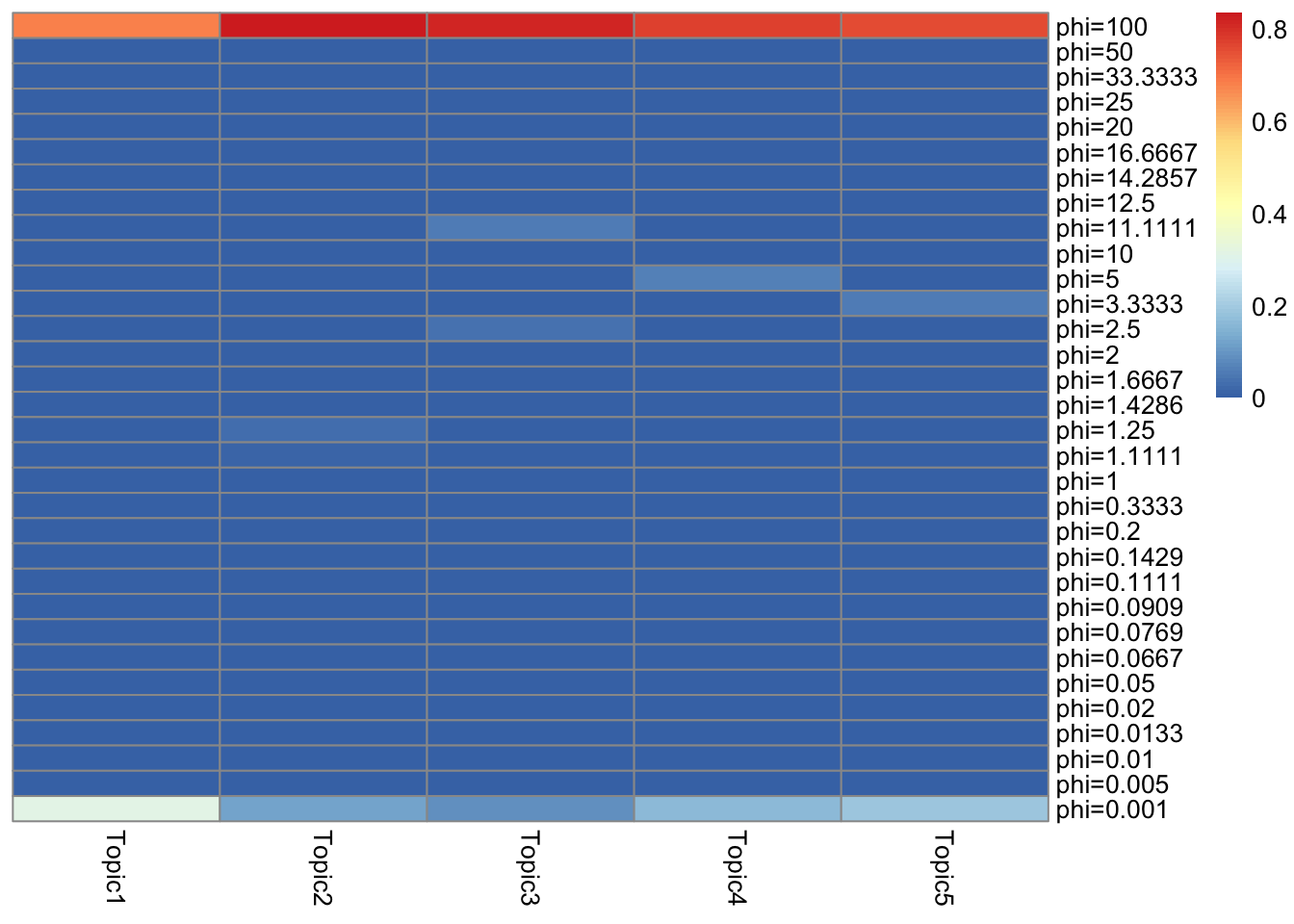

get_prior_summary(model2$qg$gls)
- can we compare the two ELBOs, since the two models are different?
- Seems that we can explore ways of initialization…
